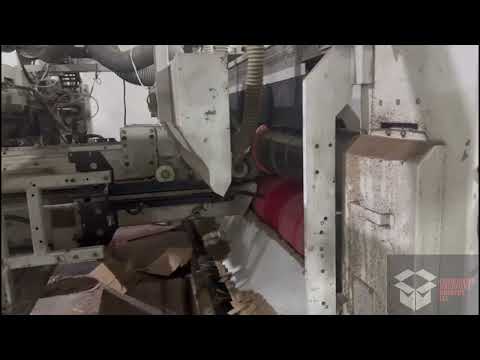

37"X97" BOBST 924 4 color Vacuum Transfer Flexo Folder Gluer with Inline Rotary Die-Cutter (Dismantled and loaded)
¿Tienes uno para vender?
CondiciónUsado
1 disponible
Equipped with
1 ODJ Tech Robotic Pre Feeder
1 Feed unit with Sun Lead Edge Feeder
4 Vacuum transfer Flexo Graphic Print Units dual chamber blade bottom printing with Ceramic Anilox Roll Upgraded 2024 chambers and anilox rolls.
LPI 250, 250, 250, 250
1 Slotting section with Motorized Slotting Section (6 Shafts)
1 Rotary Die-Cutter with Servo Drive with Dicar Blankets
1 Vacuum Folding section Folding Section with folding lugs Valco OT-12 Glue Unit
1 Over Stacking Counter Ejector
Touch Screen Control can be run in one of five languages
Computerized Set up
380 Volt 50 Hertz 3 phase
Max. sheet:1000x2400mm
Min. sheet: 270x750mm
Max. printing area: 900x 2380mm
Min. printing area: 270x750mm
Dimension: L30000x W5500x H2650mm
Total weight: 80 Tons Total power: 280KW
Design speed: 350 sheets/min.
