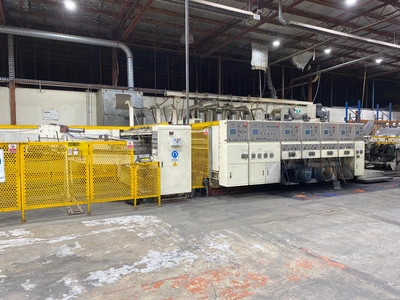

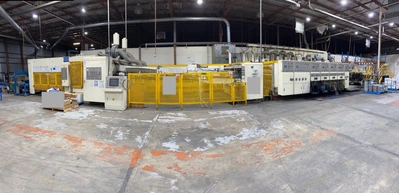

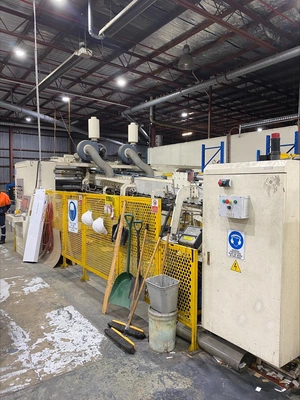

47"x108" (1200x2750mm) LMC Latitude P1200 4 Colors Vacuum Transfer Top Print Flexo Folder Gluer with Die Cut section.
Have one to sell?
ConditionUsed
1 available
47"x108" (1200x2750mm) LMC Latitude P1200 4 Colors Vacuum Transfer Top Print Flexo Folder Gluer with Die Cut section.
Equipped with:
1 Pre-feeder
1 Feed unit with Lead Edge Feeder

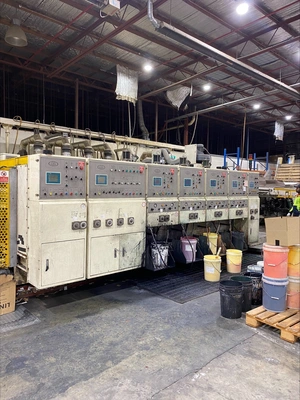

4 Flexo Print Units with Vacuum Transfer ,Top Print, chamber blade ink system

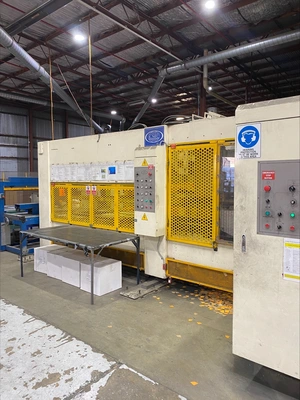

1 Die cut section fully automatic

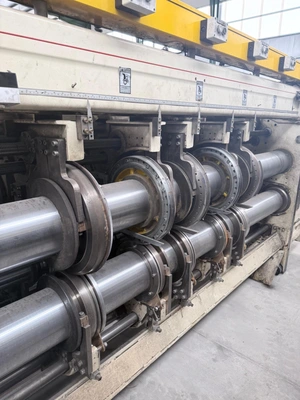

1 Dual Slotting section with Double slotting

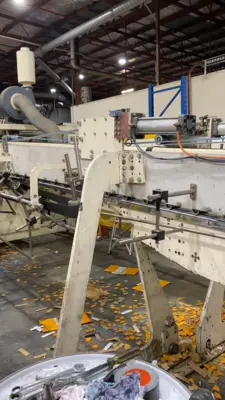

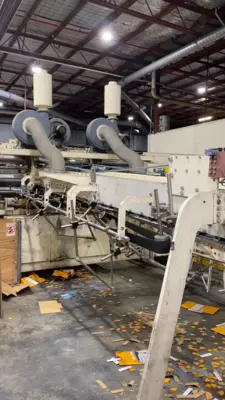

1 Folding section with vacuum assist
1 Counter ejector with Over stacking counter ejector

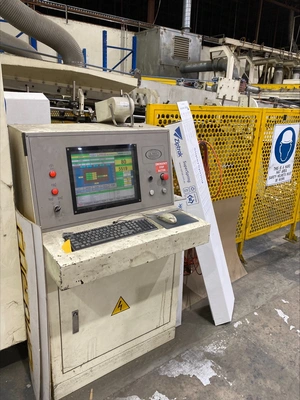

Computerized set up
Any and all spare parts
Manuals if available
Electrical datas:
Phase-3, Wire-4, Voltage - 380 volts, 50 cycle for drive, DC 24 volt for control

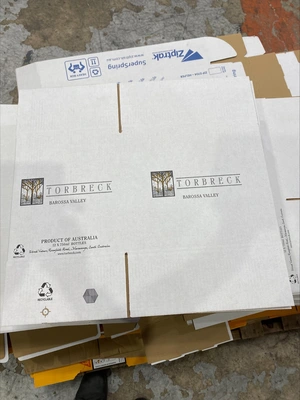

Top printing for corrugated board, to be processed A, B, C and B/C, A/B, B/E, C/E flute and E flute.
Max. Machine design speed 220 sheets/min. depending on sheet size, quality and etc.
- Finished blank Min-600, Max 2750
- Two panels Min 260(380), Max 1350
- Small panel (at trim) Min 80mm for press, 140mm for FG, entire machine can run 80mm with reduced speed. Max 1175(900).
- Large panel (at glue lap) Min 180mm for press, 240mm for FG, entire machine can run 180mm with reduced speed. Max 1290 (900)
-Glue lap width max 50, Length min 0(90)
- Sheet width (standard regular feed) - Min 310, Max 1170
- Sheet width (skip feed), Max 1170 (1570)
- Printing surface length, Max 2680. Square box Min 180(260), Max 2680.
