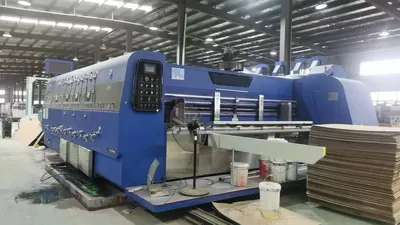

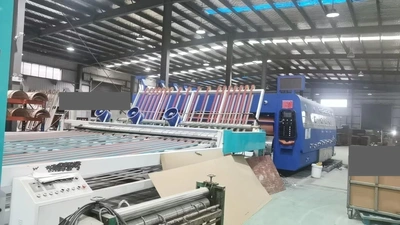

98”x181” SC JUMBO 3 Color Rotary Die Cutter with Slotting Section & Auto Stacker
Have one to sell?
ConditionUsed
1 available
98”x181” SC JUMBO 3 Color Rotary Die Cutter with Slotting Section
1 Feed unit with Lead Edge Feeder
3 Flexo Graphic print units
Motorized Slotter (6 shafts)

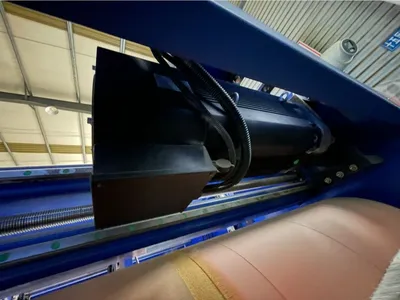

Rotary Die Cutter (Independent Servo Control with speed synchronization system)
Vibration Stripper with fog spray
Auto Stacker
Any and all spare parts if available
Manual if available
Additional Information:
1. Grappling roll with rapid movement mechanism
2. Feeding system with double rubber rollers and double chrome rollers
3. Semi pre-creaser and creaser units featuring quick-change design for minimal downtime
4. Components made from carbon powder-impregnated durable material
5. Precision corner blades for accurate cutting

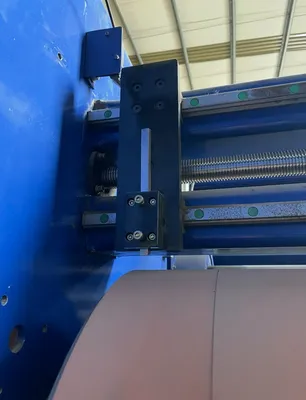

6. Dual-screw drive system with dual straight line guiding rails to stabilize the adjustments
7. Motorized trimming device integrated with die-cutting anvil cover
8. Automatic lubrication station
9. Vertical stabilization locking system to secure unit movement
10. Die-cutting brushing device for effective scrap removal
11. Fog spray system to dampen crisp paperboards and prevent cracking during folding
12. Vibration stripping device for optimal scrap stripping performance
13. Heat blower

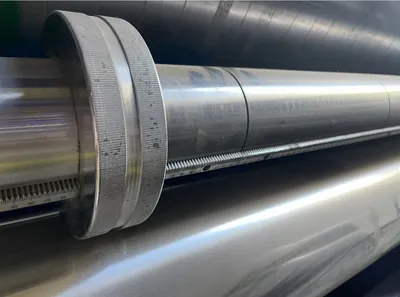

Diameter of Die cutting cylinder with mold thickness is 31"(800mm), wooden thickness for three ply paperboards is o,63"(16mm), for five ply the wooden thickness is 0,51"(13mm). Fasten screw diameter is 0,39"(10mm), axial partition distance is 3,39"(100mm), 18 equal section is 18 sections, suitable for die cutting blade thickness 1"(25.4mm). Anvil cover cylinder diameter is 20"(516mm), with anvil covers, diameter is 21"(536mm).
Max. sheet size: 98”x181” (2500X4600mm)
Max. printing area: 98”X165” (2500X4200mm)
Printer Diameter: 31”(800mm)
Slotting Blade Thickness: 0.28” (7mm)
Total weight: 46 Tons
Total power: 70KW
Power supply: 380V, 50HZ, 3 Phase, 4 Wires
Working speed: 100 sheets/minute
